HAKRC BLS 4-in-1 ESC For FPV Drone – 2–4S LiPo, ● 30 dagen geld-terug-garantie ● 1 jaar fabrikарантie ▶ Koop nu met vertrouwen!

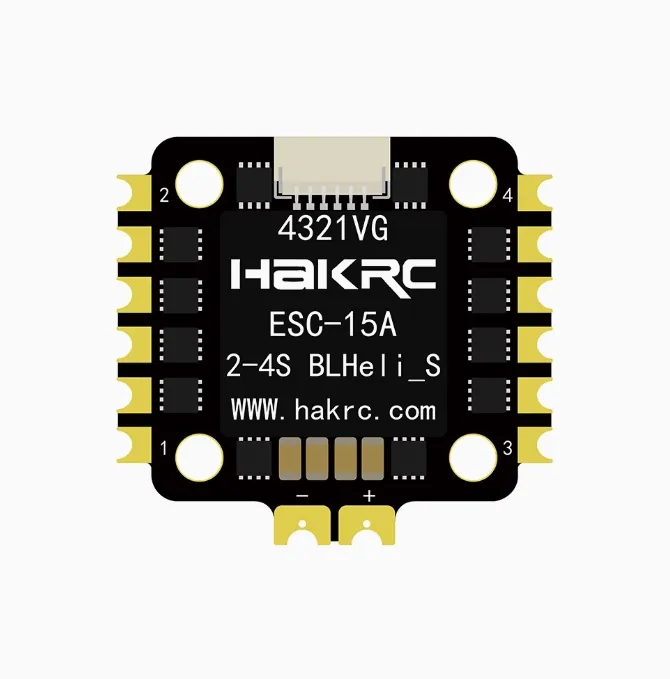

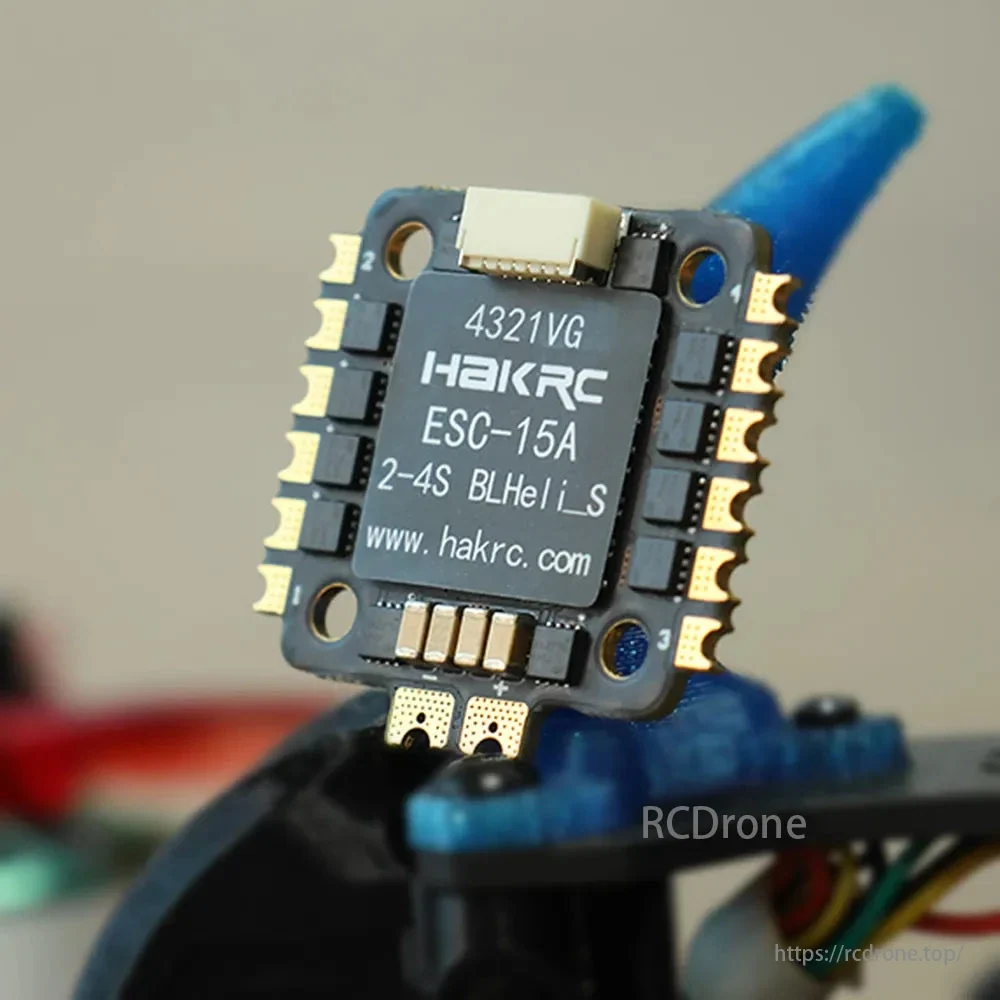

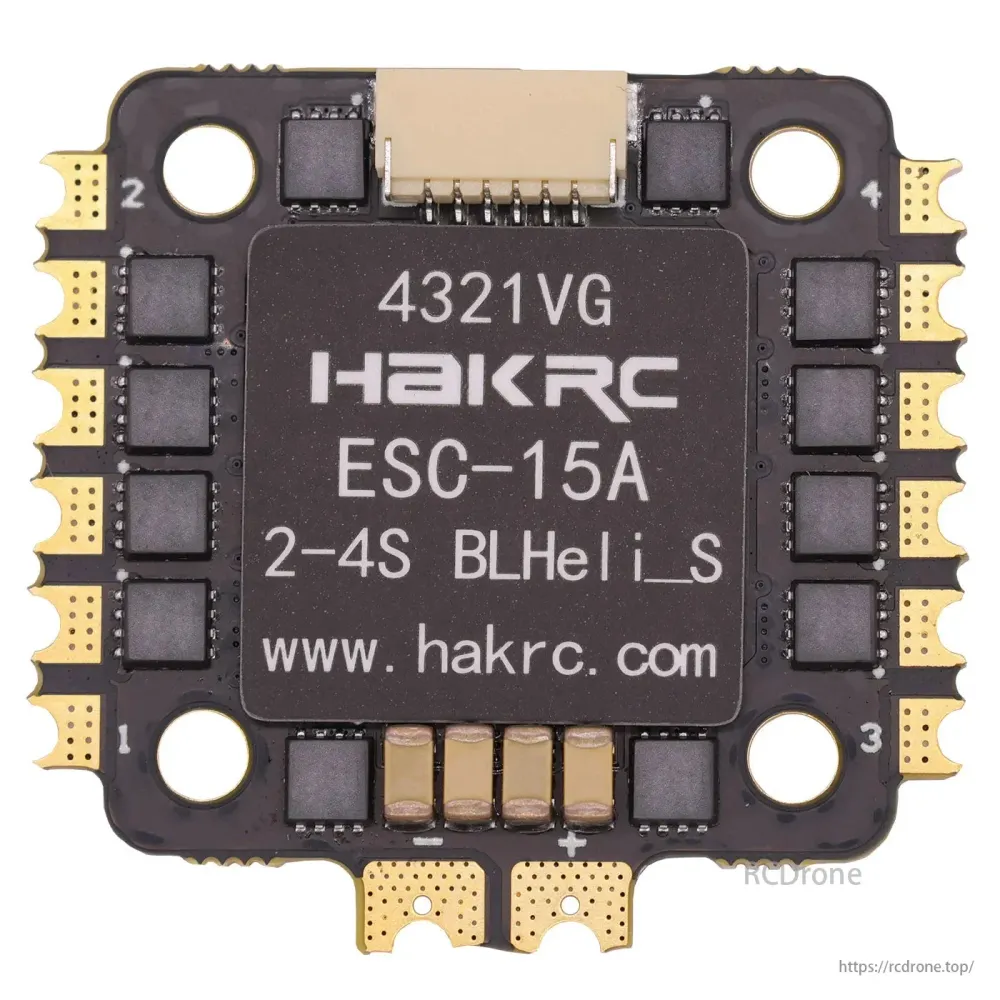

The HAKRC BLS 15A 4-in-1 ESC is a compact and lightweight electronic speed controller designed for micro FPV drones and ultralight builds. It supports up to 2–4S LiPo input, delivering 15A continuous current and up to 25A burst current per channel.

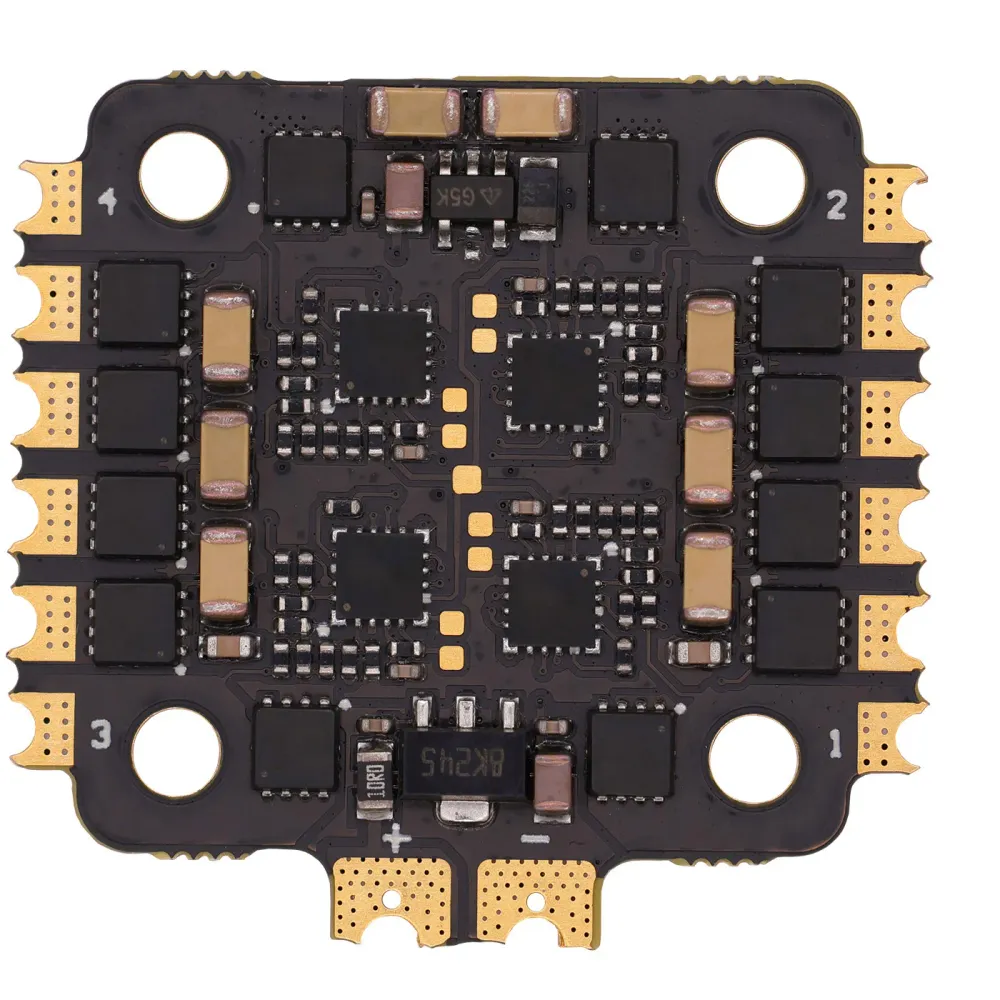

Built around the EMF8BB21F16G 48MHz MCU, this ESC features a dual-pad soldering design, imported high-frequency MOSFETs, and 3-in-1 FD6288Q drivers, ensuring stable output, efficient operation, and precies throttle control. The 4-layer PCB with 2oz copper and metallized pad edges improves thermal performance and durability under demanding flight conditions.
🔧 Specifications
-
MCU: EMF8BB21F16G, 48MHz
-
Firmware: BLHeli_S (G_H_20 – Rev. 16.7 – Multi)
-
Input Voltage: 2S–4
